Product information
| Frequency (GHz) | Min: 25.5 Max: 31.0 |
|---|---|
| Loss Max (dB) | 1.0 |
| VSWR (dB) | 1.50 : 1 |
| Isolation Min (dB) | 14 |
| Temp Min (°C) | -10 |
| Temp Max (°C) | 65 |
| Power CW (W) | 20 |

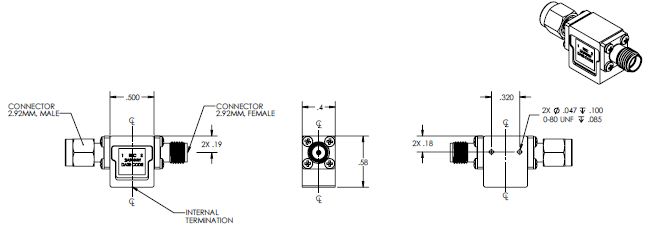

| Dimensions | 0.5 × 0.5 × 0.32 in |
