Product information
| Frequency (GHz) | Min: 1.0 Max: 6.0 |
|---|---|
| Loss Max (dB) | 6.5 |
| VSWR (dB) | 1.4:1 |
| Isolation Min (dB) | 4 – J5 > 60 dB OR > 20dB BASED ON PD SELECTED |
| Temp Min (°C) | -40 |
| Temp Max (°C) | 85 |

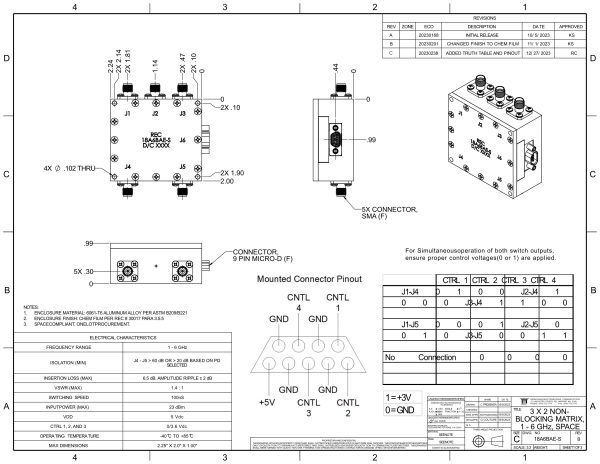

| Dimensions | 2.00 × 2.24 × .99 in |
